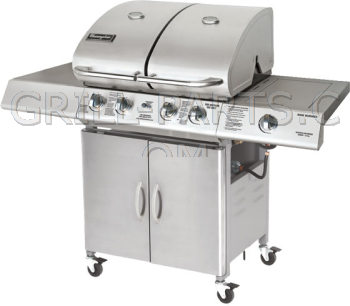

Charmglow 810-7420-F Grill Parts

Adjustable universal front-to-back tube burner with top-ported flame holes for Charmglow model 810-7420-F. This burner may not work with existing ignition electrodes and back burner cross-overs.

• Variable length burner adjusts from 13 1/2” to 17 1/2”.
• Includes extra hardware and mounting brackets to accommodate almost all grills.
• Comes with complete installation instructions and diagrams.

WARNING: Before ordering this universal burner, please verify that it will work in your grill per the specifications above. If you order this universal burner and it does not work in your grill, please review our Return Policy for ”Ordered Wrong Part.” You will be responsible for all shipping fees.


Part Number: FP-BR1001
Material: stainless steel
Weight: 0.7

Stainless steel tube burner with air shutter for Charmglow model 810-7420-F. SET OF THREE (3). Fits Brinkmann and Brinkmann-made 3-burner grill models from Home Depot, Lowes, Academy Sports, Bass Pro, Kenmore and more.

NOTE: Some of the discontinued burners this part replaces were 1 1/4” diameter tube burners. This 1” burner is a fully functional replacement.

Part Number: 14041-X3
Dimensions: 16 5/16” x 1”
Material: stainless steel
Weight: 2.4

Stainless steel tube burner with air shutter for Charmglow model 810-7420-F. SET OF FOUR (4). Fits Brinkmann and Brinkmann-made 4-burner grill models from Home Depot, Lowes, Academy Sports, Bass Pro, Kenmore and more.

NOTE: Some of the discontinued burners this part replaces were 1 1/4” diameter tube burners. This 1” burner is a fully functional replacement.

Part Number: 14041-X4
Dimensions: 16 5/16” x 1”
Material: stainless steel
Weight: 3.2

Stainless steel tube burner with air shutter for Charmglow model 810-7420-F. SET OF FIVE (5). Fits Brinkmann and Brinkmann-made 3-burner grill models from Home Depot, Lowes, Academy Sports, Bass Pro, Kenmore and more.

NOTE: Some of the discontinued burners this part replaces were 1 1/4” diameter tube burners. This 1” burner is a fully functional replacement.

Part Number: 14041-X5
Dimensions: 16 5/16” x 1”
Material: stainless steel
Weight: 4.0

stainless steel burner for Charmglow model 810-7420-F.

Part Number: CTB2
Dimensions: 16 1/4
Material: stainless steel
Weight: 1.0

Premium grade 304 stainless burner for Charmglow model 810-7420-F.


Part Number: CTB3 (Replaces Charmglow 154-6430-0)
Dimensions: 15 7/8
Material: stainless steel
Weight: 1.0

Cooking grid not known for Charmglow model 810-7420-F. Our parts information for this grill model is incomplete, and we really don't know with certainty which cooking grid fits this model. It may be that we have the part but don't show it here due to data or other error.

If you know the original OEM part number, try searching for it in the search box at the top of this page.

You can also browse through all of the Charmglow cooking grids we carry. If we don't have the exact fit grid for your grill, we may have a suitable replacement part. Measure your existing part as well as the the grid support area of the grill so you'll know exactly what size grids will fit.

If you have this grill model and know the number and dimensions of your original cooking grids, please share this information with us. Click here to send an email to our GrillDr that includes this information. We greatly appreciate your help.

Part Number: CG-DUMMY
Weight: 1.0

SET OF THREE/3 PACK Stainless steel Heat Distribution Plates/Flame Tamers for Charmglow model 810-7420-F. Made in USA.

NOTE: Sometimes shipped with vinyl peel-off coating. Remove before use.e.

Part Number: CLA-TS0156-X3
Dimension Front-to-Back: 16 15/16”
Dimension Side-to-Side: 3 15/16”
Material: stainless steel
Weight: 2.1

SET OF FOUR/4 PACK Stainless steel Heat Distribution Plates/Flame Tamers for Charmglow model 810-7420-F. Made in USA.

NOTE: Sometimes shipped with vinyl peel-off coating. Remove before use.e.

Part Number: CLA-TS0156-X4
Dimension Front-to-Back: 16 15/16”
Dimension Side-to-Side: 3 15/16”
Material: stainless steel
Weight: 2.8

Stainless steel heat distribution plate for Charmglow model 810-7420-F.

Part Number: BMHP1 (Replaces Charmglow 600-7310-T)
Dimension Front-to-Back: 16 3/4”
Dimension Side-to-Side: 3 7/8”
Material: stainless steel
Weight: 0.7

Push-button electronic igniter with three (3) spade connectors. Comes with sliver or black cap per availability. Needs (1) AA battery (not included); requires 7/8” mounting hole.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: TS-IG3007 (Replaces Charmglow 119-4400-5)
Weight: 0.2

Collector box with ceramic igniter electrode and wire.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-21B (Replaces Charmglow 600-7541-B)
Weight: 0.2

Oval lid heat indicator. Three-hole mount with two threaded studs 1 1/2” offset on center. Requires 3/8” center hole for temperature sensor probe.

Part Number: 22551 (Replaces Charmglow 072-7310-0)
Dimensions: 2 15/16” x 1 7/8”
Weight: 0.2

Universal four piece mini thermometer set. Great gift idea.

• 2 calibrated for steak, and 2 for chicken
• Mini thermometers for testing doneness of individual cuts of meat
• Silicone bezels for easy removal when hot
• Always use caution when handling hot objects

Part Number: 11381
Weight: .25

Stainless steel smoker box with cover. For use with all grills. Insert moistened wood chips (not included) for your favorite smoke flavor, 8 3/4” x 3 1/2” x 1 1/2”.


Part Number: SSST
Material: stainless steel
Weight: 1.5

5-piece unique tennis oriented utensil set. Constructed of heavy stainless steel with ”tennis grips” on each utensil. Includes yellow tennis ball style salt & pepper shakers, along with spatula, fork and tong.

Makes a nice gift.for tennis-minded folks

Part Number: US10
Weight: 5.00

GrillPro ® grid lifter removes both cast and stainless cooking grids.

One set of tines to remove cast and another to remove stainless cooking grids.

Stainless tip, resin handle.

Part Number: 76745
Material: stainless
Weight: .2

Rib & Roast Rack.

Reversible rib rack and roast support. Made of stainless steel with a frame that holds 6 racks of ribs and a roast support for large cuts of meat.

Part Number: 41616
Material: stainless steel
Weight: 0.5

Cannon Grill Towel.

Part Number: CGT
Dimensions: 16” x 25”
Weight: 0.30
