Charbroil Designer 463244405 Grill Parts

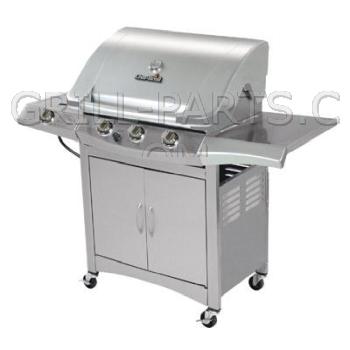

Char-Broil Designer Series Stainless 3-Burner LP gas BBQ grill

Highest quality replacement parts for your Charbroil Designer 463244405 - Free USA shipping $49 or more* - No Sales Tax*

Charbroil 463244405 owners manual and diagrams

Diagrams & owners manual not available for grill model# 463244405. If you have a manual you're willing to share, please click here to send us an email with the attached manual. Thank You!

Replacement grill parts for Charbroil Designer (463244405)

All of the parts we have for Charbroil 463244405 are shown on this page. If you can't find the part you need below, click on the appropriate category button on the right side of the page. For example, if your looking for a heat indicator and there are none here, click the heat indicator button to see all we have for Charbroil grills. Knowing the dimensions of your existing part will help you find the right part.

To get the correct Charbroil 463244405 BBQ parts

You should measure your existing parts and compare them to what we show here. This is best done with them removed from the grill.
Verify your Charbroil model number by checking the CSA appliance tag on your grill to make sure you have the correct model number. Do not rely solely on the owners manual as these are frequently mixed up at retail stores when the grills are assembled. You'd be surprised at how many folks have the wrong owners manual.

463244405 Burners

Click for photos

Cast iron burner for Charbroil model 463244405.

Part Number: CIDCH (Replaces Charbroil 80000023)
Dimensions: 13 13/16” x 2 1/4”
Material: cast iron
Weight: 3.0

==> All Charbroil Burners.

463244405 Cooking Grids

Click for photos

Commerical grade 304 stainless steel cooking grid with 1/4” diameter rods for Charbroil model 463244405.

Part Number: 504S3-1PC
Dimension Front-to-Back: 16 1/2”
Dimension Side-to-Side: 11 7/8”
Material: stainless steel wire
Weight: 4.0

Click for photos

Cast iron cooking grids for Charbroil model 463244405. SET OF TWO (2) panels.

Porcelain treated, matte finish
Each panel measures 16 15/16” x11 3/4”
Overall dimensions: 16 15/16” x23 1/2”

Part Number: CG-63P-CI-X2 (Replaces Charbroil 80000399)
Dimension Front-to-Back: 16 15/16”
Dimension Side-to-Side: 11 3/4”
Material: cast iron
Weight: 14.30

Click for photos

Cast iron cooking grid for Charbroil model 463244405. Porcelain treated, matte finish. Sold individually, number required varies by grill model.

Part Number: CG-63P-CI (Replaces Charbroil 80000293)
Dimension Front-to-Back: 16 15/16”
Dimension Side-to-Side: 11 3/4”
Material: cast iron
Weight: 7.15

==> All Charbroil Cooking Grids.

463244405 Heat Plates

Click for photos

SET OF THREE/3 PACK Stainless steel heat plate/Flame Tamer for Charbroil model 463244405. Made in USA.

NOTE: Sometimes shipped with vinyl peel-off coating. Remove before use.
This part is currently out of stock, but more are already on the way and expected to arrive mid May

Part Number: CLA-TS0143-X3
Dimension Front-to-Back: 15”
Dimension Side-to-Side: 4 3/16”
Material: stainless steel
Weight: 2.4

Click for photos

Stainless steel heat plate/Flame Tamer for Charbroil model 463244405.

This part is currently out of stock, but more are already on the way and expected to arrive mid May

Part Number: CBHP4 (Replaces Charbroil 80000855)
Dimension Front-to-Back: 15 1/16”
Dimension Side-to-Side: 4 5/16”
Material: stainless steel
Weight: 0.7

==> All Charbroil Heat Plates.

463244405 Knobs and Handles

Click for photos

Universal black control knob. Counter-clockwise bezel.

Off position D-Value: Selectable
Knob diameter: 2 1/16”
Socket diameter: 8mm
Knob shaft: None

Part Number: 01800
Dimensions: 2 1/16” x 2 1/16”
Material: plastic
Weight: 0.05

Click for photos

Black control knob for Fire Magic Custom, Regal, and Gourmet grills.

Off position D-Value: 6 o'clock
Knob diameter: 2”
Socket diameter: 8mm
Knob shaft: None

Part Number: 01700 (Replaces Charbroil 80000354)
Dimensions: 2” x 2”
Material: plastic
Weight: 0.1

==> All Charbroil Knobs and Handles.

463244405 Rotisserie components

Click for photos

Universal durable battery operated rotisserie motor. Conveniently eliminates the need for electric cords. Runs on 2 D cells (not included).

Part Number: RO-4
Weight: 1.0

==> All Charbroil Rotisserie components.

463244405 Accessories

Click for photos

Wundersmoke Mesquite Chips. These unique mesquite wood smoking chips add distinctive flavoring to your food. For use will all grills. Comes with reusable puck. One 1lb bag.

Part Number: BP-5
Weight: 1.0

Click for photos

Fish Spatula. Stainless steel fish spatula with genuine rosewood handle. 18 1/2”. 10” spatula width.

Part Number: FS-1
Dimensions: 18 1/2
Material: stainless steel
Weight: 1.0

Click for photos

Set of six 22” stainless steel V skewers with wood handles and silicone bezels. Silicone bezel helps the handle stay cool longer. V-shaped skewers keep food from spinning on shaft.

Part Number: 40538
Material: chrome steel
Weight: 1.1

Click for photos

Stainless Steel Basting Set.

Measurements inside the stainless steel bowl for accurate sauce preparation. Includes silicone basting brush.

Part Number: 14913
Material: stailess steel
Weight: 0.5

Click for photos

Cannon Grill Towel.

Part Number: CGT
Dimensions: 16” x 25”
Weight: 0.30

==> All 463244405 Accessories.
