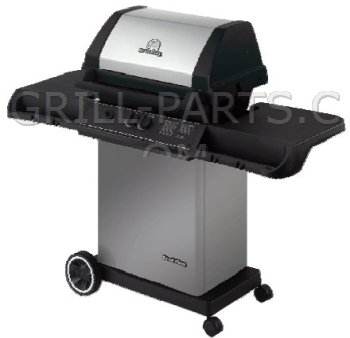

Broil King Crown 10B 9956-57B Grill Parts

Genuine OEM Broil King stainless steel Infinity burner assembly for Broil King model 9956-57B. This burner assembly does not include the electrodes. Includes:

• One stainless steel Infinity burner
• Twin venturi with spider exclusion screens

Part Number: 10390-T501
Dimensions: 8” x 20”
Material: Stainless steel
Weight: 3.2

Genuine OEM Broil King cast iron cooking grid, single panel for Broil King model 9956-57B.

• Sold individually.
• Number required varies.
• Porcelain treated matte finish.

Part Number: 38170121
Dimension Front-to-Back: 15”
Dimension Side-to-Side: 12 3/4”
Material: Cast Iron
Weight: 5.55

COOKING GRID 390 PORCELAIN, GLOSSY COATED for Broil King model 9956-57B. SOLD INDIVIDUALLY.

• Sold individually
• Number required varies, check your grill

Part Number: 04160152
Dimension Front-to-Back: 15 1/16”
Dimension Side-to-Side: 12 13/16”
Material: porcleain steel
Weight: 5.8

10225-E404 Genuine OEM Broil King stainless steel cooking grid for Broil King model 9956-57B.

• SOLD INDIVIDUALLY.
• Number required varies, check your grill to be sure.
• Fits Signet and Crown models

Part Number: 10225-E404
Dimension Front-to-Back: 15”
Dimension Side-to-Side: 12 3/4”
Material: Stainless steel
Weight: 5.10

Genuine OEM Broil King reversible heavy cast iron cooking grid SOLD INDIVIDUALLY for Broil King model 9956-57B.

• Sold individually
• Number required varies, check your grill
• Porcelain treated, flat matte finish
• Pointed side is designed for perfect sear marks
• Grooved side captures juices for continuous basting

Note: See part 10225-E404 for a stainless steel version of this grid.

Part Number: 10225-T436
Dimension Front-to-Back: 15”
Dimension Side-to-Side: 12 3/4”
Material: Cast iron
Weight: 7.6

Porcelain steel cooking grid for Broil King model 9956-57B. Porcelain enameled, glossy finish. Sold individually.

Part Number: 51901
Dimension Front-to-Back: 15 1/16”
Dimension Side-to-Side: 25 1/4”
Material: porcelain steel wire
Weight: 6.13

Genuine OEM Broil King stainless steel Flav-R-Wave heat plate for Broil King model 9956-57B. Also replaces porcelain-steel lava rock/briquette grate part# 10222-T424, which has been discontinued by the manufacturer.

Part Number: 10222-T425
Dimension Front-to-Back: 11 1/4”
Dimension Side-to-Side: 23”
Material: Stainless steel
Weight: 3.0

Electronic push-button 1-spade igniter.

• Uses AAA battery (not included)
• Requires 3/4” mounting hole
• Also replaces part 10342-248
• See part number SBB00047 for ignitor that uses a longer lasting AA battery and requires a 7/8” mounting hole.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

This part is currently out of stock, but more are already on the way and expected to arrive late May

Part Number: 10342-244
Weight: 0.3

Genuine OEM Broil King collector box and electrode assembly. Includes:

• burner mounted box with mounting screw
• ceramic electrode and 17” wire with round connector and protective sleeve
• Use with burners 10390-T401 (14102) and 10390-T501 (14212)

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 10342-T301
Weight: 0.05

Electronic igniter with one (1) spade connector.

• One AA battery required (not included).
• Requires 7/8 inch mounting hole.
• Will have a silver or a black cap.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: SBB00047
Weight: 0.20

Genuine OEM Broil King disposable grease pans. Package of 10. Each measures 4.75”x6”x1”.

Part Number: S15115
Dimensions: 4 3/4” x 6”
Material: aluminum
Weight: 0.25

Broil King 58” Select grill cover 67487. Broil King Select Series covers are crafted from durable and weather resistant PVC / 500 x 300 denier polyester lining. These durable covers feature:

• Hook-and-loop tabs that secure the cover around the grill
• Polyester handles for easy removal
• Hanging loops for convenient storage
• The Broil King brand logo on the front

Exact fit for models:

• Baron 440, 490 Series grills
• Crown 10, 90 Series grills, post model
• Signet 70, 90 Series grills
• Sovereign 20, 40, 70, and 90 Series grills

Dimensions:

• Side-to-Side: 58”
• Height: 46”
• Front-to-Back: 21.5”

Part Number: 67487
Weight: 3.0

Broil King 58” premium grill cover 68487. Broil King premium covers are crafted of durable water resistant PVC with heavy woven 900D polyester backing.

Exact fit for models:

• Baron 440, 490 Series grills
• Crown 10, 90 Series grills, post model
• Signet 70, 90 Series grills
• Sovereign 20, 40, 70, and 90 Series grills

Features:

• Mesh venting for enhanced air flow and moisture resistance
• Hook-and-loop closures for a superior fit
• Blue baseball stitching adds style to the extra-reinforced seams
• Molded rubber handles make the cover easy to remove

Dimensions:

• Side-to-Side: 58”
• Height: 46”
• Front-to-Back: 21.5”

Part Number: 68487
Weight: 5.0

10472-K431 Control knob large. Black with stainless steel BA strip.

Genuine OEM control knob.

• Off position D-Value: 6 o'clock
• Knob diameter: 2 1/4”
• Socket diameter: 5/16”
• Knob stem: 1/2”

Part Number: 10472-K431
Weight: 0.1

Five piece 3/8” natural gas quick disconnect set includes:

• Part ASCPL-2 12ft vinyl 3/8” ID Sturgis hose (3/8” inside diameter outside diameter about 1/2”) with solid brass fittings
• Part ASCPL-3 Sturgis brand 3/8” quick connect brass coupler
• Hansen & Sturgis dust cover
• plastic dust plug
• Plastic 3/8 MPT Snap Tite
• Suitable up to approximately 60,000 BTU.

Part Number: ASCPL-1
Weight: 3.0

Genuine OEM Broil King 7” cart wheel with 3/8” axel hole. Mini hub cap is # 00400251, sold separately.

Part Number: 10892-7G
Weight: .45

Genuine OEM Broil King caster wheel; approximately 2 3/8” diameter.
This part is currently out of stock, but more are already on the way and expected to arrive late May

Part Number: 10892-15
Weight: 0.35

Genuine OEM Broil King chrome steel warming rack. Also, the same as part number 10225-E391, the porcelain enameled warming rack.

Part Number: 10225-E390
Dimensions: 10 1/8” x 23 5/8”
Material: Nickel/Chrome
Weight: 3.10

Genuine OEM Broil King porcelain enameled steel warming rack; also, the same as part number 10225-E391 the chrome version.

Part Number: 10225-E391
Dimensions: 10 1/8” x 23 5/8”
Material: Porcelain steel
Weight: 3.10

Gas control assembly for natuarl gas models. NG-2V. Includes valves, no hose.

Part Number: 10440-T51
Weight: 0.7

Genuine OEM Broil King Heat indicator. About 2 3/8” wide and 2” high. The threaded stem is about 5 /16” diameter and 1 1/8” long.

Part Number: 10571-6
Weight: 0.12

Hinge pin clip.

Part Number: S21233
Weight: 0.01

Push nut 3/8

Part Number: S21420
Weight: 0.1

SHELF SUPPORT LH BLK

Part Number: 10184-E461
Weight: 1.0

GrillPro Wood chips from genuine oak whiskey barrels.

• All natural wood smoke flavor
• Great for use in BBQ's or smokers.
• 170 cubic inches (2 lbs. approx) in resealable bag

Try with beef, burgers, pork, lamb, poultry, and fish.

Part Number: 00215
Weight: 2.0

16” Stainless Steel Tong/Turner Combination. 16” multi-use tool with red soft grip rubber inserts. Can be used as a turner, tong or both. Manual lock saves on storage space.

Part Number: 40240
Dimensions: 16” x 4”
Material: chrome steel
Weight: 0.9

Universal 6 piece chrome plated skewer set. Designed so food does not rotate. Great for kabobs! 19 1/2” long.

Part Number: SR-7B
Dimensions: 19 1/2
Material: chrome steel
Weight: 1.0

Deluxe 13” basting mop with hardwood handle and cotton mop head. Great for spreading BBQ sauces, marinades, and glazes on meat and poultry.

Part Number: 42055
Dimensions: 13
Weight: 0.2

Porcelain Coated Square Wok Topper.
12” x 12” x 2” porcelain coated grilling wok with stainless steel handles and perforations. The single draw design improves functionality and rigidity, it also makes it much easier to clean.

Part Number: 98121
Dimensions: 12” x 12”
Material: porcelain steel
Weight: 1.6

Grill Mitt With Neoprene Palm.

16 in. silicone mitt diffuses heat away from the hand and washes easily. Black palm / red colored cuff. Cotton lined.
*One Size Fits Most

Part Number: 90963
Weight: 0.2
