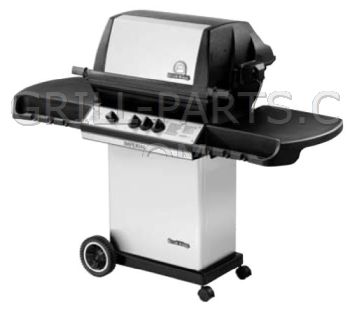

Broil King Imperial 70 969-77 Grill Parts

Genuine OEM Broil King stainless steel Infinity burner assembly for Broil King model 969-77. This burner assembly does not include the electrodes. Includes:

• One stainless steel Infinity burner
• Twin venturi with spider exclusion screens

Part Number: 10390-T501
Dimensions: 8” x 20”
Material: Stainless steel
Weight: 3.2

Genuine OEM Broil King stainless steel rotisserie burner assembly for Broil King model 969-77.

Includes:
• 26 3/16” SS rotisserie burner with deflector (part# S13005)
• Burner-mounted electrode, gas collector box, and 45” wire
• Completely assembled

Part Number: S13005A
Dimensions: 26 3/16”
Weight: 1.10

Genuine OEM Broil King reversible heavy cast iron cooking grids SOLD INDIVIDUALLY for Broil King model 969-77.

• Sold individually
• Number required varies, check your grill
• Porcelain treated, flat matte finish
• Pointed side is designed for perfect sear marks
• Grooved side captures juices for continous basting

Part Number: 10225-T626
Dimension Front-to-Back: 17 3/4”
Dimension Side-to-Side: 8 3/8”
Material: Cast iron
Weight: 7.4

Genuine OEM Broil King cast iron Flav-R-Cast. Sold individually, two (2) required.

Each panel is 12 2/3” x 11 13/16”, which yields a total width (for two) of 23 1/4".

Part Number: 10222-T626
Dimension Front-to-Back: 12 3/4”
Dimension Side-to-Side: 11 1/2”
Material: Cast iron
Weight: 7.12

Heat Plate/ Flame Tamer not known for Broil King model 969-77. Our parts information for this grill model is incomplete, and we really don't know with certainty which heat plate fits this model. It may be that we have the part but don't show it here due to data or other error.

If you know the original OEM part number, try searching for it in the search box at the top of this page.

You can also browse through all of the heat plates we carry for your brand grill. If we don't have the exact fit for your grill, we may have a suitable replacement part. Measure your existing part so you'll know exactly what size is needed.

If you have this grill model and know the number and dimensions of your original heat plates, click here to send an email to our GrillDr that includes this information. We greatly appreciate your help.

Part Number: HP-DUMMY
Weight: 1.0

Genuine OEM Broil King electronic push-button 2-spade igniter.

• Uses AAA battery (not included)
• .Requires 3/4” mounting hole
• Also replaces part# 10342-242 and 10342-249

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 10342-245
Weight: 0.3

Genuine OEM Broil King collector box and electrode assembly. Includes:

• burner mounted box with mounting screw
• ceramic electrode and 17” wire with round connector and protective sleeve
• Use with burners 10390-T401 (14102) and 10390-T501 (14212)

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 10342-T301
Weight: 0.05

Genuine OEM Broil King disposable grease pans. Package of 10. Each measures 4.75”x6”x1”.

Part Number: S15115
Dimensions: 4 3/4” x 6”
Material: aluminum
Weight: 0.25

Genuine OEM Broil King rotary igniter knob.

Part Number: 10472-K40
Weight: 0.1

10472-K431 Control knob large. Black with stainless steel BA strip.

Genuine OEM control knob.

• Off position D-Value: 6 o'clock
• Knob diameter: 2 1/4”
• Socket diameter: 5/16”
• Knob stem: 1/2”

Part Number: 10472-K431
Weight: 0.1

Triangular handle washer. 1/8 in thick. Made of heat resistant compressed material.

Part Number: 10239-7
Dimensions: 1 1/2” x 1 1/4”
Weight: 0.05

Type 1 LP Regulator with 22” Pressure Hose and 3/8” Female Flare Fitting.FITS: Up to 60,000 BTUs

Part Number: HR-4B
Weight: 0.8

Five piece 3/8” natural gas quick disconnect set includes:

• Part ASCPL-2 12ft vinyl 3/8” ID Sturgis hose (3/8” inside diameter outside diameter about 1/2”) with solid brass fittings
• Part ASCPL-3 Sturgis brand 3/8” quick connect brass coupler
• Hansen & Sturgis dust cover
• plastic dust plug
• Plastic 3/8 MPT Snap Tite
• Suitable up to approximately 60,000 BTU.

Part Number: ASCPL-1
Weight: 3.0

Genuine OEM Broil King 8” cart wheel with a 3/8” axel hole. Also replaces part# 10892-8, and 10892-8N which have been discontinued. Is a solid rubber wheel with a plastic hub, and it has a grey sidewall stripe instead of the white found on 10892-8N.

Part Number: 10892-8NG
Dimensions: 8
Weight: 1.6

Genuine OEM Broil King caster wheel; approximately 2 3/8” diameter.
This part is currently out of stock, but more are already on the way and expected to arrive late May

Part Number: 10892-15
Weight: 0.35

Genuine OEM Broil King Heat indicator. About 2 3/8” wide and 2” high. The threaded stem is about 5 /16” diameter and 1 1/8” long.

Part Number: 10571-6
Weight: 0.12

Hinge pin clip.

Part Number: S21233
Weight: 0.01

TANK RETAINER-PEDESTAL-NEW

Part Number: 10184-R19
Weight: 1.0

REAR BURNER SPRING

Part Number: S21362
Weight: 1.0

Push nut 3/8

Part Number: S21420
Weight: 0.1

Bolt hex head 1 1/2” length

Part Number: Y-6616
Weight: 0.02

Shelf support, left.

Part Number: 10184-R581
Weight: 1.5

SHELF SUPPORT RH BLK(18”)

Part Number: 10184-R591
Weight: 1.0

Apple wood chips.

• All natural wood smoke flavor
• Great for use in BBQ's or smokers.
• 170 cubic inches (2 lbs. approx) in resealable bag

Try with portk, lamb, poultry, and fish.

Part Number: 00230
Weight: 2.0

20” Professional Extra Long Tong.
20” Stainless steel tong with red soft grip rubber inserts. Grip your food on the grill with ease. Manual lock saves on storage space.

Part Number: 40269
Material: stainless steel
Weight: 0.14

7” Bamboo BBQ Kabobs. Appetizer Server/Grilling Skewers - pack of 50. Limited to supplies on hand.

• Ideal for searving or grilling appetizers
• Wide end for easy handling

Part Number: 11040
Dimensions: 7
Weight: 0.4

Deluxe 13” basting mop with hardwood handle and cotton mop head. Great for spreading BBQ sauces, marinades, and glazes on meat and poultry.

Part Number: 42055
Dimensions: 13
Weight: 0.2

Porcelain Coated Square Wok Topper.
12” x 12” x 2” porcelain coated grilling wok with stainless steel handles and perforations. The single draw design improves functionality and rigidity, it also makes it much easier to clean.

Part Number: 98121
Dimensions: 12” x 12”
Material: porcelain steel
Weight: 1.6

Grill Mitt With Neoprene Palm.

16 in. silicone mitt diffuses heat away from the hand and washes easily. Black palm / red colored cuff. Cotton lined.
*One Size Fits Most

Part Number: 90963
Weight: 0.2
