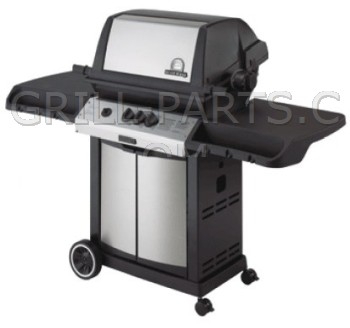

Broil King Regal XL70 962-77 Grill Parts

Genuine OEM Broil King stainless steel Infinity burner assembly for Broil King model 962-77. This burner assembly does not include the electrodes. Includes:

• One stainless steel Infinity burner
• Twin venturi with spider exclusion screens

Part Number: 10390-T501
Dimensions: 8” x 20”
Material: Stainless steel
Weight: 3.2

Genuine OEM Broil King stainless steel rotisserie burner assembly for Broil King model 962-77.

Includes:
• 26 3/16” SS rotisserie burner with deflector (part# S13005)
• Burner-mounted electrode, gas collector box, and 45” wire
• Completely assembled

Part Number: S13005A
Dimensions: 26 3/16”
Weight: 1.10

Genuine OEM Broil King cast iron cooking grid, SOLD INDIVIDUALLY for Broil King model 962-77.

• Sold individually.
• Number required varies.
• Porcelain enameled cast iron, flat matte finish.

Part Number: 10225-T536
Dimension Front-to-Back: 17”
Dimension Side-to-Side: 8 1/4”
Material: Cast iron
Weight: 7.6

Cast iron cooking grid for Broil King model 962-77. Porcelain treated, matte finish. Sold individually, number required varies.

Part Number: 66124-1PC
Dimension Front-to-Back: 16 15/16”
Dimension Side-to-Side: 8 5/16”
Material: cast iron
Weight: 3.75

Cast iron cooking grid for Broil King model 962-77. Porcelain treated, matte finish. FIts Kenmore And Other Import Grills. Sold individually, number required varies.

Part Number: CG-74P-CI
Dimension Front-to-Back: 16 7/8”
Dimension Side-to-Side: 8 1/4”
Material: cast iron
Weight: 8.90

Cast iron cooking grids for Broil King model 962-77. SET OF THREE (3) panels.

• Porcelain treated, matte finish
• Each panel measures 16 7/8” x 8 1/4”
• Overall dimensions: 16 7/8 x 23 3/4”

Part Number: CG-74P-CI-X3
Dimension Front-to-Back: 16 7/8”
Dimension Side-to-Side: 24 3/4”
Material: cast iron
Weight: 26.7

Genuine OEM Broil King stainless steel Flav-R-Wave heat plate for Broil King model 962-77. Also replaces porcelain-steel lava rock/briquette grate part# 10222-T424, which has been discontinued by the manufacturer.

Part Number: 10222-T425
Dimension Front-to-Back: 11 1/4”
Dimension Side-to-Side: 23”
Material: Stainless steel
Weight: 3.0

Genuine OEM Broil King electronic push-button 2-spade igniter.

• Uses AAA battery (not included)
• .Requires 3/4” mounting hole
• Also replaces part# 10342-242 and 10342-249

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 10342-245
Weight: 0.3

Genuine OEM Broil King collector box and electrode assembly. Includes:

• burner mounted box with mounting screw
• ceramic electrode and 17” wire with round connector and protective sleeve
• Use with burners 10390-T401 (14102) and 10390-T501 (14212)

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 10342-T301
Weight: 0.05

Genuine OEM Broil King disposable grease pans. Package of 10. Each measures 4.75”x6”x1”.

Part Number: S15115
Dimensions: 4 3/4” x 6”
Material: aluminum
Weight: 0.25

10472-K431 Control knob large. Black with stainless steel BA strip.

Genuine OEM control knob.

• Off position D-Value: 6 o'clock
• Knob diameter: 2 1/4”
• Socket diameter: 5/16”
• Knob stem: 1/2”

Part Number: 10472-K431
Weight: 0.1

Triangular handle washer. 1/8 in thick. Made of heat resistant compressed material.

Part Number: 10239-7
Dimensions: 1 1/2” x 1 1/4”
Weight: 0.05

Five piece 3/8” natural gas quick disconnect set includes:

• Part ASCPL-2 12ft vinyl 3/8” ID Sturgis hose (3/8” inside diameter outside diameter about 1/2”) with solid brass fittings
• Part ASCPL-3 Sturgis brand 3/8” quick connect brass coupler
• Hansen & Sturgis dust cover
• plastic dust plug
• Plastic 3/8 MPT Snap Tite
• Suitable up to approximately 60,000 BTU.

Part Number: ASCPL-1
Weight: 3.0

Genuine OEM Broil King 7” cart wheel with 3/8” axel hole. Mini hub cap is # 00400251, sold separately.

Part Number: 10892-7G
Weight: .45

Genuine OEM Broil King caster wheel; approximately 2 3/8” diameter.
This part is currently out of stock, but more are already on the way and expected to arrive late May

Part Number: 10892-15
Weight: 0.35

Genuine OEM Broil King warming rack

Part Number: 10225-T528
Dimensions: 7 3/4” x 24 3/4”
Weight: 4.5

Universal durable battery operated rotisserie motor. Conveniently eliminates the need for electric cords. Runs on 2 D cells (not included).

Part Number: RO-4
Weight: 1.0

Genuine OEM Broil King Heat indicator. About 2 3/8” wide and 2” high. The threaded stem is about 5 /16” diameter and 1 1/8” long.

Part Number: 10571-6
Weight: 0.12

Hinge pin clip.

Part Number: S21233
Weight: 0.01

REAR BURNER SPRING

Part Number: S21362
Weight: 1.0

Push nut 3/8

Part Number: S21420
Weight: 0.1

Bolt hex head 1 1/2” length

Part Number: Y-6616
Weight: 0.02

Genuine OEM Broil King End Cap, door. Left hand side, with magnet.
This part is currently out of stock, but more are already on the way and expected to arrive late May

Part Number: 10184-E78A
Dimensions: 9 3/4
Weight: 0.36

END CAP DOOR BOTTOM LEFT A

Part Number: 10184-E76
Dimensions: 10
Weight: .25

Genuine OEM Broil King End Cap, door. RIght hand side, with magnet.

Part Number: 10184-E79A
Weight: 0.36

END CAP DOOR BOTTOM RIGHT A

Part Number: 10184-E77
Dimensions: 10
Weight: .25

Shelf support, left.

Part Number: 10184-R581
Weight: 1.5

SHELF SUPPORT RH BLK(18”)

Part Number: 10184-R591
Weight: 1.0

Genuine OEM Broil King Side shelf, left side.

Part Number: 10711-R562
Weight: 3.10

Stainless steel smoker box with cover. For use with all grills. Insert moistened wood chips (not included) for your favorite smoke flavor, 8 3/4” x 3 1/2” x 1 1/2”.


Part Number: SSST
Material: stainless steel
Weight: 1.5

5-piece unique tennis oriented utensil set. Constructed of heavy stainless steel with ”tennis grips” on each utensil. Includes yellow tennis ball style salt & pepper shakers, along with spatula, fork and tong.

Makes a nice gift.for tennis-minded folks

Part Number: US10
Weight: 5.00

Set of six 22” stainless steel V skewers with wood handles and silicone bezels. Silicone bezel helps the handle stay cool longer. V-shaped skewers keep food from spinning on shaft.

Part Number: 40538
Material: chrome steel
Weight: 1.1

Stainless Steel Basting Set.

Measurements inside the stainless steel bowl for accurate sauce preparation. Includes silicone basting brush.

Part Number: 14913
Material: stailess steel
Weight: 0.5

Cannon Grill Towel.

Part Number: CGT
Dimensions: 16” x 25”
Weight: 0.30
