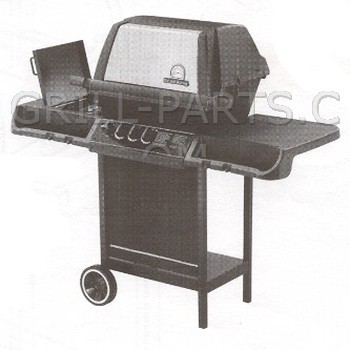

Broil King Crown 4 9434-4 Grill Parts

Highest quality replacement parts for your Broil King Crown 4 9434-4 - Free USA shipping $49 or more* - No Sales Tax*

Broil King 9434-4 owners manual and diagrams

Click the small images on the right to view Broil King 9434-4 exploded parts diagrams and parts lists. Owners manual not available. If you have a manual you're willing to share, please click here to send us an email with the attached manual. Thank You!

Broil King 9434-4-306566633-PartsExpS1.jpg

Broil King 9434-4-306566633-PartsLstS1.jpg

Replacement grill parts to fit Broil King Crown 4 9434-4

On this page you'll find all of the parts that fit model Broil King 9434-4. We might not show the part you need here but we may still have it, or a functional equivalent. In this case, try the category buttons on the right. For example, if your looking for a cooking grid and there are none here, click the cooking grids button to see all of the cooking grids we have for Broil King grills. Knowing the dimensions of your existing part will help you find the right part.

To get the correct Broil King 9434-4 BBQ parts

You should measure your existing parts and compare them to what we show here. This is best done with them removed from the grill.
Verify your Broil King model number by checking the CSA appliance tag on your grill to make sure you have the correct model number. Do not rely solely on the owners manual as these are frequently mixed up at retail stores when the grills are assembled. You'd be surprised at how many folks have the wrong owners manual.

9434-4 Burners

Click for photos

Genuine OEM Broil King stainless steel burner and venturi assembly for Broil King model 9434-4.

Part Number: 10390-T401
Dimensions: 6 1/2” x 14 5/8”
Material: Stainless steel
Weight: 2.3

==> All Broil King Burners.

9434-4 Cooking Grids

Click for photos

Genuine OEM Broil King cast iron cooking grid SOLD INDIVIDUALLY for Broil King model 9434-4.

Sold individually
Number required varies, check your grill
Porcelain treated, flat matte finish

Part Number: 10225-T356
Dimension Front-to-Back: 14 3/4”
Dimension Side-to-Side: 10 3/4”
Material: Cast iron
Weight: 6.1

Click for photos

Cast iron cooking grids for Broil King model 9434-4. Porcelain treated, flat matte finish. Sold as a set of two (2).

Part Number: 63262
Dimension Front-to-Back: 14 3/4”
Dimension Side-to-Side: 21 1/2”
Material: matte cast iron
Weight: 15.1

==> All Broil King Cooking Grids.

9434-4 Heat Plates

Click for photos

Genuine OEM Broil King stainless steel Flav-R-Wave SS heat plate for Broil King model 9434-4.

Part Number: 10222-T325
Dimension Front-to-Back: 10 3/8”
Dimension Side-to-Side: 18”
Material: Stainless steel
Weight: 2.4

==> All Broil King Heat Plates.

9434-4 Igniter Components

Click for photos

Rotary igniter for one outlet uses round connector wire; includes knob.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 10342-241
Weight: 0.2

Click for photos

Genuine OEM Broil King collector box and electrode assembly. Includes:

burner mounted box with mounting screw
ceramic electrode and 17” wire with round connector and protective sleeve
Use with burners 10390-T401 (14102) and 10390-T501 (14212)

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 10342-T301
Weight: 0.05

==> All Broil King Igniter Components.

9434-4 Knobs and Handles

Click for photos

Genuine OEM Broil King rotary igniter knob.

Part Number: 10472-K40
Weight: 0.1

==> All Broil King Knobs and Handles.

9434-4 Regulators and Hoses

Click for photos

Type 1 LP Regulator with 22” Pressure Hose and 3/8” Female Flare Fitting.FITS: Up to 60,000 BTUs

Part Number: HR-4B
Dimensions: 22
Weight: 0.8

==> All Broil King Regulators and Hoses.

9434-4 Heat indicators and Meat Thermometers

Click for photos

Genuine OEM Broil King Heat indicator. About 2 3/8” wide and 2” high. The threaded stem is about 5 /16” diameter and 1 1/8” long.

Part Number: 10571-6
Weight: 0.12

==> All Broil King Heat indicators and Meat Thermometers.

9434-4 Accessories

Click for photos

Stainless steel smoker box with cover. For use with all grills. Insert moistened wood chips (not included) for your favorite smoke flavor, 8 3/4” x 3 1/2” x 1 1/2”.

Part Number: SSST
Material: stainless steel
Weight: 1.5

Stainless steel straight handle grill brush with replaceable head. Brass bristles and scarper. See part# WB-8RH for replacement grill brush heads. 18 1/2” long.
This part is currently out of stock, but more are already on the way and expected to arrive SPRING 23

Part Number: WB-8
Dimensions: 18 1/2
Material: stainless steel
Weight: 0.8

==> All 9434-4 Accessories.
