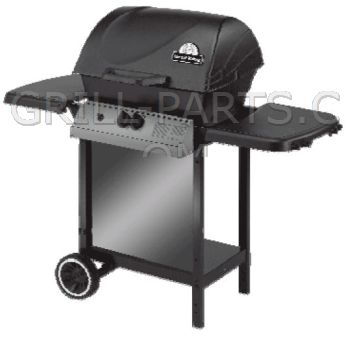

Broil King 546-13 Grill Parts

Genuine OEM Broil King stainless steel burner and venturi assembly for Broil King model 546-13. Includes burner-mounted igniter electrode and wire part# S15500. Fully assembled.

Part Number: S10077
Dimensions: 8” x 16”
Material: Stainless steel
Weight: 2.5

Genuine OEM Broil King cooking grid SOLD INDIVIDUALLY for Broil King model 546-13.

• Sold individually
• Number required varies, check your grill
• Porcelain enameled steel, glossy finish

Part Number: 10225-T341
Dimension Front-to-Back: 14 7/8”
Dimension Side-to-Side: 11”
Material: Porcelain steel
Weight: 2.15

Genuine OEM Broil King stainless steel Flav-R-Wave SS heat plate for Broil King model 546-13.

Part Number: 10222-T325
Dimension Front-to-Back: 10 3/8”
Dimension Side-to-Side: 18”
Material: Stainless steel
Weight: 2.4

Push button igniter. For single wire for grills with no side burner. Wires not included. Comes in black or grey as available from manufacturer.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 10342-21
Weight: 0.05

Genuine OEM Broil King collector box and electrode assembly. Includes

• burner mounted collector box (clip on)
• ceramic electrode and 18” wire with round connector and protective sleeve.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: S15500
Weight: 0.1

Stainless steel wire grease cup holder for mini bucket #S15112 which has been discontinued and replaced with mini bucket # 4673-FC. This wire holder can also be used with tin cans for easy disposal of grease.

Part Number: S15111
Material: stainless steel
Weight: 0.02

Mini grease bucket used with wire holder S15111.

Part Number: S15112
Weight: .03

Black lid handle. Fits older GrillPro and other models which use a half-handle that is 10 3/4” long. Requires 8 3/4” mounting holes, center to center.

Part Number: 30230228
Weight: 0.45

Genuine OEM Broil King 7” cart wheel with 3/8” axel hole. Mini hub cap is # 00400251, sold separately.

Part Number: 10892-7G
Weight: .45

Wheel bolt 3.25” long; uses one hinge pin part number S21233 not included.

Part Number: 10240-13
Weight: .10

Genuine OEM Broil King warming rack.

• Front-to-back of rack itself: 11 7/8”
• Side-to-side of rack itself: 21 5/8”
• Length of rear mounting rod: 24 1/2”
• Length of front swing-away rod: 23 5/8”

Part Number: 38110172
Dimensions: 24 1/2
Weight: 3.8

Genuine OEM Broil King Heat indicator. About 1 7/8” wide and 1 7/16” high. The threaded stem is about 5/16” diameter and 1 1/8” long.

Part Number: 10571-5
Dimensions: 1 7/8” x 1 7/16”
Weight: 0.1

Hinge pin clip.

Part Number: S21233
Weight: 0.01

Leg plug extension.

Part Number: Y-12665
Weight: 0.1

Washer

Part Number: S21255
Weight: 0.01

Stainless steel smoker box with cover. For use with all grills. Insert moistened wood chips (not included) for your favorite smoke flavor, 8 3/4” x 3 1/2” x 1 1/2”.


Part Number: SSST
Material: stainless steel
Weight: 1.5

15” Stainless steel tong.

• Soft comfort grip
• Locking mechanism

Part Number: 40259
Dimensions: 15
Material: stainless steel
Weight: 0.14
