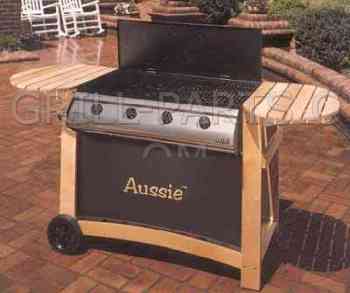

Aussie Kanga 4 7402 Grill Parts

Cast stainless steel burner for Aussie model 7402. Tired of changing out rusted cast iron burners? Far superior to the cast iron and brass versions, this burner will probably outlast your grill. Designed to replace cast iron and brass burners of same design.

NOTE: This burner is equiped with an air intake adjustable control shutter (not shown in photos) and with an air intake control screw for regulating the air/gas mixture into the burner. Natural gas applications require more air (more open screw) than lquid propane (LP). If necessary, adjust screw to get a yellow-tipped blue flame.

Part Number: 23301-CSS
Dimensions: 16” x 2 7/16”
Material: cast stainless steel
Weight: 3.2

Cast iron burner for Aussie model 7402.

Part Number: CIT
Dimensions: 15 3/4” x 2 7/8”
Material: cast iron
Weight: 4.2

Premium quality heavy duty stainless steel cooking grid for Aussie model 7402. Our USA-made premium stainless grids are simply the best obtainable. We have them manufactured here in the USA to our specifications and standards, which are high. Of course, they're not available anywhere else.

Unlike the standard issue stainless grids generally found today, which are typically low grade stainless and sometimes hollow, or coated carbon steel, our premium grids are made from solid high quality stainless steel rods. If you're looking for the best, you've found it. Just look at the weight of one of these grids, over 6 pounds of solid stainless each.

• 304 commercial grade stainless steel
• Large diameter 5/16” solid stainless rods
• Dimensions: 19 1/4” x 10 1/4”
• Made in USA.
• Sold individually.

See part CLA-GS0005-X3 for a more economical 3-pack.

Part Number: CLA-GS0005
Dimension Front-to-Back: 19 1/4”
Dimension Side-to-Side: 10 1/4”
Material: stainless steel
Weight: 6.3

Premium quality stainless steel cooking grid for Aussie model 7402. Our USA-made premium stainless grids are simply the best obtainable. We have them manufactured here in the USA to our specifications and standards, which are high. Of course, they're not available anywhere else.

Unlike the standard issue stainless grids generally found today, which are typically low grade stainless and sometimes hollow, or coated carbon steel, our premium grids are made from solid high quality stainless steel rods. If you're looking for the best, you've found it.

• 304 commercial grade stainless steel
• 1/4” diameter solid stainless rods
• Dimensions: 18 7/8” x 10”
• Made in USA.
• Sold individually.

Part Number: CLS9151
Dimension Front-to-Back: 18 7/8”
Dimension Side-to-Side: 10”
Material: solid stainless steel
Weight: 4.0

Aftermarket reversible heavy cast iron cooking grid for Aussie model 7402.

• Sold individually
• Number required varies, check your grill
• Porcelain treated, flat matte finish
• Pointed side is designed for perfect sear marks
• Grooved side captures juices for continous basting

Fits: Broil King 500/625/750 series grills.

NOTE: This aftermarket part, made of the same materials as the original, is a perfect replacement for original part# 22005-281 but at a much lower cost.

Part Number: 22005-281-R
Dimension Front-to-Back: 19 1/4”
Dimension Side-to-Side: 6 1/16”
Material: Cast iron
Weight: 5.0

Porcelain steel cooking grid for Aussie model 7402. Porcelain enameled, glossy finish. Sold individually.

Part Number: 51631
Dimension Front-to-Back: 19”
Dimension Side-to-Side: 6 5/16”
Material: porcelain steel wire
Weight: 4.0

Cast iron cooking grid for Aussie model 7402. Porcelain treated, flat matte finish. Sold individually, number required varies, check your grill.

Part Number: 67845-1PC
Dimension Front-to-Back: 19 3/16”
Dimension Side-to-Side: 6 1/16”
Material: matte cast iron
Weight: 5.5

Cast iron cooking grids, porcelain treated, flat matte finish for Aussie model 7402.

Part Number: 67845
Dimension Front-to-Back: 19 3/16”
Dimension Side-to-Side: 30 5/16”
Material: matte cast iron
Weight: 27.2

Cast iron cooking grid for Aussie model 7402.

• Sold inividually
• Porcelain treated, matte finish
• Number required varies by grill model
• Each panel measures 19 1/4” x 10 3/8”

Part Number: CG-69P-CI
Dimension Front-to-Back: 19 1/4”
Dimension Side-to-Side: 10 3/8”
Material: cast iron
Weight: 7.10

Cast iron cooking grids for Aussie model 7402. SET OF THREE (3) panels.

• Porcelain treated, matte finish
• Each panel measures 19 1/4” x 10 3/8”
• Overall dimensions: 19 1/4” x 31 1/8”

Part Number: CG-69P-CI-X3
Dimension Front-to-Back: 19 1/4”
Dimension Side-to-Side: 31 1/8”
Material: cast iron
Weight: 21.3

Cast iron cooking grid for Aussie model 7402. Porcelain treated, flat matte finish. Sold individually.

Part Number: 69501
Dimension Front-to-Back: 19”
Dimension Side-to-Side: 6 1/8”
Material: cast iron
Weight: 4.85

Heat Plate/ Flame Tamer not known for Aussie model 7402. Our parts information for this grill model is incomplete, and we really don't know with certainty which heat plate fits this model. It may be that we have the part but don't show it here due to data or other error.

If you know the original OEM part number, try searching for it in the search box at the top of this page.

You can also browse through all of the heat plates we carry for your brand grill. If we don't have the exact fit for your grill, we may have a suitable replacement part. Measure your existing part so you'll know exactly what size is needed.

If you have this grill model and know the number and dimensions of your original heat plates, click here to send an email to our GrillDr that includes this information. We greatly appreciate your help.

Part Number: HP-DUMMY
Weight: 1.0

Hickory flavor wood chunks. 4 lbs.
Note package erroneously states quantity at 5lbs.

Part Number: 00221
Weight: 4.2

Meat Claws.

Shredding pork, chicken, or beef has never been easier. Spare the fork these meat shedding claws can hold with the larger outside tines and shred fine strands of meat with the smaller inside tines. Crafted of stainless steel with an easy to use grip that can be held multiple ways.
Each claw is 8.25 in. in overall length.

Part Number: 44070
Dimensions: 8 1/4
Material: stainless steel
Weight: 0.5

Universal 6 piece chrome plated skewer set. Designed so food does not rotate. Great for kabobs! 19 1/2” long.

Part Number: SR-7B
Dimensions: 19 1/2
Material: chrome steel
Weight: 1.0

GrillPro EZ Check Gas level indicator. Accurate from -22° to 104°F. Magnetic back. Works on all sizes of tanks.

This tank gauge will monitor your propane level, while you grill, and let's you know when you're running low on gas.

The magnetic tank gauge offers fast, accurate propane level monitoring for any size LP tank. The magnetic backing makes it easy to attach, remove, and reuse across multiple tanks—perfect for grilling, camping, patio heaters, and more

Part Number: 00030
Weight: 0.1

Beer Can Chicken Roaster. Stainless steel.

Just place any 12 oz can into the center frame and put your spiced chicken cavity over the can and then put on the grill or oven, Infuses with flavors from various beverage in the can, Like Beer, Juice, Wine, etc. Your chicken will impart a different flavor! After use, the racks can be cleaned easily.

Part Number: CCR
Weight: 1.0

Universal Grid Lifting Tool

Part Number: BRGG
Weight: 1.0
