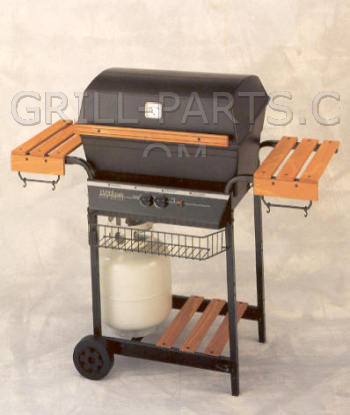

Arkla U4041 Grill Parts

Deluxe stainless steel twin-venturi burner and venturi assembly for Arkla model U4041. Includes:

• DLB stainless steel H burner.
• Deluxe burners have a special spot-welded mounting bracket for optional IG-5B universal tongue-style collector box and electrode. The IG-5B can be used in applications where the factory ignition system is irrepairable, non existant, or otherwise unusable.
• Two (2) V-12 stainless steel single venturi.
• Venturi gasket and mounting nuts (venturi mounts with nuts and bolts, not screws).
• 5 year MHP limited warranty.
• Click here for features of MHP deluxe SS burner.

Part Number: DLB+V-12
Dimensions: 8 1/8” x 19 1/2”
Material: stainless steel
Weight: 2.0

Deluxe stainless steel twin-venturi burner for Arkla model U4041. Includes:

• DLB stainless steel H burner (venturi not included).
• Deluxe burners have a special spot-welded mounting bracket for optional IG-5B universal tongue-style collector box and electrode. The IG-5B can be used in applications where the factory ignition system is irrepairable, non existant, or otherwise unusable.
• Venturi gasket and mounting nuts (venturi mounts with nuts and bolts, not screws).
• 5 year MHP limited warranty.
• Click here for features of MHP deluxe SS burner.

Part Number: DLB
Dimensions: 8 1/8” x 19 1/2”
Material: stainless steel
Weight: 2.0

Stainless steel corrugated tubing to resist rust and corrosion single venturi. O-Ring seat for positive gas seal. Flexible and adjustable from 8” to 11”. Gasket & screws not included, see part # SHK4, sold individually.

Part Number: V-12
Dimensions: 11
Material: stainless steel
Weight: .3

Single Gasket Kit Economy Burners

Part Number: SHK4
Weight: 0.01

Cast iron cooking grids for Arkla model U4041. Porcelain treated, flat matte finish. Sold as a set of two (2).

Part Number: 61602
Dimension Front-to-Back: 14 3/4”
Dimension Side-to-Side: 23 1/2”
Material: matte cast iron
Weight: 12.8

Chrome/nickel plated cooking grid for Arkla model U4041. Sold individually, two (2) required. Made in USA.

Part Number: CG-13
Dimension Front-to-Back: 14 1/4”
Dimension Side-to-Side: 11 7/8”
Material: Chrome steel
Weight: 2.4

Cast iron cooking grid for Arkla model U4041. Porcelain treated, matte finish. Sold individually, number required varies by grill model

Part Number: CG-61P-CI
Dimension Front-to-Back: 15”
Dimension Side-to-Side: 12”
Material: cast iron
Weight: 6.45

Porcelain coated steel cooking grid - SET OF TWO MEASURES 14 5/16” X 24” for Arkla model U4041. Made in USA.

Part Number: CG-9P
Dimension Front-to-Back: 14 5/16”
Dimension Side-to-Side: 12”
Material: Porcelain steel
Weight: 4.5

Premium quality stainless steel cooking grid for Arkla model U4041. Far superior to the porcelain coated steel grids it replaces.

• 304 commercial grade stainless steel
• .225 diameter stainless rods
• Made in USA
• Sold individually; grill may require more than one grid

Part Number: CG-9SS
Dimension Front-to-Back: 14 3/8”
Dimension Side-to-Side: 11 3/4”
Material: Stainless steel
Weight: 3.7

Cast iron cooking grids for Arkla model U4041. SET OF TWO (2) panels.

• Porcelain treated, matte finish
• Each panel measures 15” x12”
• Overall dimensions: 15” x24”

Part Number: CG-61P-CI-X2
Dimension Front-to-Back: 15”
Dimension Side-to-Side: 24”
Material: cast iron
Weight: 12.9

Rock grate for holding lava rock or ceramic briquettes.

Part Number: BG-5
Dimension Front-to-Back: 12 1/2”
Dimension Side-to-Side: 22”
Material: carbon steel
Weight: 4.9

20” Ignitor adapter wire with female spade connector and male round connector. Used primarily on Ducane models 7100 and 7200 to extend the wire from the 03758 collector box and electrode to the electronic spark generator (igniter).

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 03750
Dimensions: 1/16
Weight: 0.05

Universal adapter wire with male round and female spade connectors.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 03751
Weight: 0.05

Tongue style collector box for burner mounted applications. Includes preinstalled electrode with round female connector end and 20” wire. Fits on all of our Deluxe stainless H burners (LB, SB, DLB, DSB) using special mounting bracket on these burners. Will not fit on cast iron burners (see part IG-15B for cast iron burner applications).

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-5B
Weight: 0.3

Universal collector box with electrode and wire. Fits most H burners, cast iron and stainless. Mounts to burner using venturi screws. Slotted construction allow universal adjustment of electrode position.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-15B
Weight: 0.3

Universal warming rack. For use on grills with at least 22” inside dimension.

Part Number: AP-6A
Dimensions: 6” x 21 1/2”
Material: Chrome steel
Weight: 1.3

Right valve of assembly 37000. Replaces right side of Sunbeam OEM part #3512-0100. Orifice not included. Use original or 11/32” x 32 replacement. Also fits pre-1995 Fiesta models. D-Value is 6 o'clock

Part Number: 37400
Material: brass
Weight: 0.3

BBQ'er choice porcelain grill briquets. The finest available.

• Self-Cleaning Porcelain Briquettes.
• Made of fired porcelain for even heat transfer.
• Virtually indestructible.
• About 56 pieces covers approximately 310 square inches.
• Made in USA.

NOTE: MHP model TJK requires two (2) bags.

Part Number: BQ-3A
Weight: 4.2

Natural lava rock processed and screened for uniformity. 7 lb. bag is enough for all full sized grills. Click the photo to find easy steps for installing lava rocks.

Part Number: 45887
Material: pummise
Weight: 7.0

Cherry wood chips.

• All natural wood smoke flavor
• Great for use in BBQ's or smokers.
• 170 cubic inches (2 lbs. approx) in resealable bag

Try with portk, lamb, poultry, and fish.

Part Number: 00240
Weight: 1.14

2 in 1 chrome plated turner / tong with PVC coated handle

Part Number: 40730
Dimensions: 14
Material: chrome steel
Weight: 0.6

Universal 6 piece chrome plated skewer set. Designed so food does not rotate. Great for kabobs! 19 1/2” long.

Part Number: SR-7B
Dimensions: 19 1/2
Material: chrome steel
Weight: 1.0

Stainless Steel Basting Set.

Measurements inside the stainless steel bowl for accurate sauce preparation. Includes silicone basting brush.

Part Number: 14913
Material: stailess steel
Weight: 0.5

Aluminum foil grilling trays. Package of three.

• Heavy duty aluminum foil
• Re-usable
• Great for grilling delicate foods like fish and veggies

Part Number: 50426
Dimensions: 9” x 13”
Weight: 0.4

Universal Grid Lifting Tool

Part Number: BRGG
Weight: 1.0
