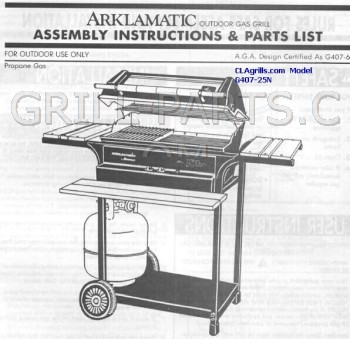

Arkla G407-25N Grill Parts

Stainless steel burner and venturi assembly kit for Arkla model G407-25N. Contains one standard EDSB SS H burner and two V-12 adjustable universal venturis.

Part Number: EDSB+V-12
Dimensions: 7 1/4” x 15 1/2”
Material: stainless steel
Weight: 2.0

Standard stainless steel burner with adjustable legs for Arkla model G407-25N. Comes with gasket and scews.

Part Number: EDSB
Dimensions: 7 1/4” x 15 1/2”
Material: stainless steel
Weight: 1.5

Deluxe stainless steel twin-venturi burner and venturi assembly for Arkla model G407-25N. Includes:

• DSB stainless steel H burner.
• Deluxe burners have a special spot-welded mounting bracket for optional IG-5B universal tongue-style collector box and electrode. The IG-5B can be used in applications where the factory ignition system is irrepairable, non existant, or otherwise unusable.
• Two (2) V-12 stainless steel single venturi.
• Venturi gasket and mounting nuts (venturi mounts with nuts and bolts, not screws).
• 5 year MHP limited warranty.
• Click here for features of MHP deluxe SS burner.

Part Number: DSB+V-12
Dimensions: 8 1/8” x 16”
Material: stainless steel
Weight: 2.0

Deluxe stainless steel twin-venturi burner for Arkla model G407-25N. Includes:

• DSB stainless steel H burner (venturi not included).
• Deluxe burners have a special spot-welded mounting bracket for optional IG-5B universal tongue-style collector box and electrode. The IG-5B can be used in applications where the factory ignition system is irrepairable, non existant, or otherwise unusable.
• Venturi gasket and mounting nuts (venturi mounts with nuts and bolts, not screws).
• 5 year MHP limited warranty.
• Click here for features of MHP deluxe SS burner.

Part Number: DSB
Dimensions: 8 1/8” x 16”
Material: stainless steel
Weight: 1.5

Cast iron burner and venturi assembly kit for Arkla model G407-25N. Comes with all necessary gaskets and screws.

Part Number: 20502-72401
Dimensions: 15 7/8” x 8”
Material: cast iron
Weight: 8.0

cast iron burner head for Arkla model G407-25N.

Part Number: 20502
Dimensions: 15 7/8” x 8”
Material: cast iron
Weight: 7.7

two venturi gaskets with screws

Part Number: 00400
Dimensions: 3 1/16” x 1 1/4”
Weight: 0.05

Stainless steel corrugated tubing to resist rust and corrosion single venturi. O-Ring seat for positive gas seal. Flexible and adjustable from 8” to 11”. Gasket & screws not included, see part # SHK4, sold individually.

Part Number: V-12
Dimensions: 11
Material: stainless steel
Weight: .3

Single Gasket Kit Economy Burners

Part Number: SHK4
Weight: 0.01

Universal stainless venturi flexible and adjustable from 8” to 11” and sold individually. Used to replace venturis for virtually any grill model for which no exact fit venturi is available. Gasket & screws not included, see part numbers 00400 or SHK4.

Part Number: 72401
Dimensions: 7 1/2” x 11”
Material: zinc plated steel
Weight: 0.3

Universal Spider Guards. Helps prevent dangerous flashback fires caused by spider webs in venturi tubes.Stainless steel spider guards slip over the air shutter on most venturi tubes to help keep the spiders out. For 3/4” venturi tubes.

Part Number: SG-B
Material: stainless steel
Weight: 0.1

Chrome plated cooking grid for Arkla model G407-25N. Made in USA.

Part Number: CG-18
Dimension Front-to-Back: 14”
Dimension Side-to-Side: 22 1/4”
Material: Chrome steel
Weight: 2.5

Chrome plated cooking grid for Arkla model G407-25N. Made in USA.

Part Number: CG-6
Dimension Front-to-Back: 13 3/4”
Dimension Side-to-Side: 20”
Material: Chrome steel
Weight: 2.9

Rock grate for holding lava rock or ceramic briquettes.

Part Number: BG-4
Dimension Front-to-Back: 11 5/8”
Dimension Side-to-Side: 19”
Material: Carbon steel
Weight: 2.7

20” Ignitor adapter wire with female spade connector and male round connector. Used primarily on Ducane models 7100 and 7200 to extend the wire from the 03758 collector box and electrode to the electronic spark generator (igniter).

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 03750
Dimensions: 1/16
Weight: 0.05

Universal adapter wire with male round and female spade connectors.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 03751
Weight: 0.05

Tongue style collector box for burner mounted applications. Includes preinstalled electrode with round female connector end and 20” wire. Fits on all of our Deluxe stainless H burners (LB, SB, DLB, DSB) using special mounting bracket on these burners. Will not fit on cast iron burners (see part IG-15B for cast iron burner applications).

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-5B
Weight: 0.3

Universal collector box with electrode and wire. Fits most H burners, cast iron and stainless. Mounts to burner using venturi screws. Slotted construction allow universal adjustment of electrode position.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-15B
Weight: 0.3

Universal warming rack. For use on grills with at least 22” inside dimension.

Part Number: AP-6A
Dimensions: 6” x 21 1/2”
Material: Chrome steel
Weight: 1.3

Natural lava rock processed and screened for uniformity. 7 lb. bag is enough for all full sized grills. Click the photo to find easy steps for installing lava rocks.

Part Number: 45887
Material: pummise
Weight: 7.0

Wundersmoke Mesquite Chips. These unique mesquite wood smoking chips add distinctive flavoring to your food. For use will all grills. Comes with reusable puck. One 1lb bag.

Part Number: BP-5
Weight: 1.0

Fish Spatula. Stainless steel fish spatula with genuine rosewood handle. 18 1/2”. 10” spatula width.

Part Number: FS-1
Dimensions: 18 1/2
Material: stainless steel
Weight: 1.0

GrillPro ® grid lifter removes both cast and stainless cooking grids.

One set of tines to remove cast and another to remove stainless cooking grids.

Stainless tip, resin handle.

Part Number: 76745
Material: stainless
Weight: .2

Basting brush with angled oak handle. 18” overall length.

Part Number: BB-5
Dimensions: 18
Weight: 0.8

Porcelain Coated Round Topper.
11” diameter x 2.5” deep porcelain coated wok with stainless steel handles and perforations. Rolled edge for rigidity and safety.

Part Number: 98130
Dimensions: 11
Material: porcelain steel
Weight: 1.0

18” long wood handle brass bristle grid brush with scraper and leather hang strap.

Part Number: WB-3
Dimensions: 18
Weight: 0.59
