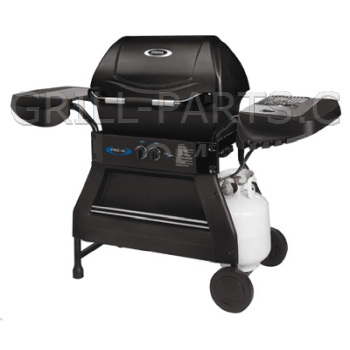

Fiesta Pro-XL XSD45055B Grill Parts

Fiesta Pro-XL Series Ready Set Grill with Optima Cooking System

Highest quality replacement parts for your Fiesta Pro-XL XSD45055B - Free USA shipping $49 or more* - No Sales Tax*

Fiesta XSD45055B owners manual and diagrams

Diagrams & owners manual not available for grill model# XSD45055B. If you have a manual you're willing to share, please click here to send us an email with the attached manual. Thank You!

Replacement BBQ grill parts for Fiesta Pro-XL XSD45055B

This page shows all of the parts we know fit model Fiesta XSD45055B. If you can't find the part you need below, click on the appropriate category button on the right side of the page. For example, if your looking for an ignitor, or other ignition components, and there are none here, click the ignition button to see what we have for Fiesta grills. Knowing the dimensions of your existing part will help you find the right part.

To get the correct Fiesta XSD45055B BBQ parts

You should measure your existing parts and compare them to what we show here. This is best done with them removed from the grill.
Verify your Fiesta model number by checking the CSA appliance tag on your grill to make sure you have the correct model number. Do not rely solely on the owners manual as these are frequently mixed up at retail stores when the grills are assembled. You'd be surprised at how many folks have the wrong owners manual.

XSD45055B Burners

Click for photos

Stainless steel burner and venturi assembly kit for Fiesta model XSD45055B. Comes with all necessary gaskets and screws.

Part Number: 19102-79402
Dimensions: 17 1/2” x 7 9/16”
Material: stainless steel
Weight: 3.2

Click for photos

Stainless steel H burner for Fiesta model XSD45055B. Burner consists of two pieces, which are held together by the venturi.

Part Number: 19102
Dimensions: 17 1/2” x 7 9/16”
Material: stainless steel
Weight: 2.0

==> All Fiesta Burners.

XSD45055B Venturis

Click for photos

L-shaped venturi pair. Includes all necessary gaskets and screws/nuts.

Part Number: 79402
Dimensions: 5 1/2” x 3 1/8”
Material: zinc plated steel
Weight: 0.9

Click for photos

Universal Spider Guards. Helps prevent dangerous flashback fires caused by spider webs in venturi tubes.Stainless steel spider guards slip over the air shutter on most venturi tubes to help keep the spiders out. For 3/4” venturi tubes.

Part Number: SG-B
Material: stainless steel
Weight: 0.1

==> All Fiesta Venturis.

XSD45055B Cooking Grids

Click for photos

Porcelain steel cooking grid for Fiesta model XSD45055B. Porcelain enameled, glossy finish. Sold individually.

Part Number: 58211
Dimension Front-to-Back: 15”
Dimension Side-to-Side: 26 9/16”
Material: porcelain steel wire
Weight: 4.12

==> All Fiesta Cooking Grids.

XSD45055B Heat Plates

Heat Plate/ Flame Tamer not known for Fiesta model XSD45055B. Our parts information for this grill model is incomplete, and we really don't know with certainty which heat plate fits this model. It may be that we have the part but don't show it here due to data or other error.

If you know the original OEM part number, try searching for it in the search box at the top of this page.

You can also browse through all of the heat plates we carry for your brand grill. If we don't have the exact fit for your grill, we may have a suitable replacement part. Measure your existing part so you'll know exactly what size is needed.

If you have this grill model and know the number and dimensions of your original heat plates, click here to send an email to our GrillDr that includes this information. We greatly appreciate your help.

Part Number: HP-DUMMY
Weight: 1.0

==> All Fiesta Heat Plates.

XSD45055B Igniter Components

Click for photos

Electrode kit.

Mounting bracket
Electrode with ceramic insulator
Wire with round connector
Protective sleeve

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 04300
Material: ceramic
Weight: 0.1

Click for photos

Universal collector box with electrode and wire. Fits most H burners, cast iron and stainless. Mounts to burner using venturi screws. Slotted construction allow universal adjustment of electrode position.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-15B
Weight: 0.3

==> All Fiesta Igniter Components.

XSD45055B Accessories

Wundersmoke Mesquite Chips. These unique mesquite wood smoking chips add distinctive flavoring to your food. For use will all grills. Comes with reusable puck. One 1lb bag.

Part Number: BP-5
Weight: 1.0

Click for photos

Fish Spatula. Stainless steel fish spatula with genuine rosewood handle. 18 1/2”. 10” spatula width.

Part Number: FS-1
Dimensions: 18 1/2
Material: stainless steel
Weight: 1.0

Click for photos

Universal Grid Lifting Tool

Part Number: BRGG
Weight: 1.0

18” long wood handle brass bristle grid brush with scraper and leather hang strap.

Part Number: WB-3
Dimensions: 18
Weight: 0.59

==> All XSD45055B Accessories.
